AI Tools for CAD Standards Enforcement: Your Complete Guide to Automated Compliance (2026)

Rules Engines vs. AI Agents: Know the Difference

Before evaluating any tool, it's worth understanding the two fundamentally different approaches to automated standards enforcement. They solve different problems, and the best teams are starting to combine both.

A rules engine checks your models against a predefined library of conditions—layer names, dimension styles, title block fields, text heights. It's deterministic: if the layer name doesn't match the approved list, it flags it. These tools have existed for years inside AutoCAD, SOLIDWORKS, and Creo, and they're excellent at format-level enforcement.

An AI agent goes further. It reads native geometry, cross-references annotations across views, interprets engineering intent, and flags issues that no static rule could anticipate—an ambiguous tolerance callout, a missing countersink note, a wall thickness that's technically within spec but unmachineable. It learns from your team's review history and applies that accumulated judgment automatically.

The key question: Does the tool understand your engineering data—geometry, feature trees, assembly structure—or is it just matching text patterns against a checklist? That distinction separates tools that catch format violations from tools that catch design errors.

Next Step: For a more detailed breakdown on the differences between LLMs and agentic workflows in engineering, check out resources on agentic AI for engineering design.

In-CAD Standards Checkers ^{In-CAD Standards Checkers}

Who It's For:Teams that need to enforce consistent layers, linetypes, dimension styles, title blocks, and naming conventions across every drawing that leaves the department.

Why It Matters:Inconsistent CAD standards create downstream chaos—misinterpreted drawings on the shop floor, failed audits with defense or aerospace customers, and hours of rework when a supplier can't parse your annotations. Rules-based checkers built into your native CAD environment catch these format-level issues before anyone else sees the file.

Tools to Explore:

• AutoCAD CAD Standards Plug-in — Built directly into AutoCAD, this plug-in compares active drawings against a "golden" DWS standards file. It checks layers, linetypes, text styles, dimension styles, and multileader styles, and can trigger on every save. Pairs with the Layer Translator for bulk cleanup of legacy files. Strong for: AutoCAD-native teams with established layer standards; organizations onboarding new drafters who need guardrails from day one.
• SOLIDWORKS Design Checker — Validates parts, assemblies, and drawings against custom rule sets covering dimensioning, annotations, materials, and document properties. Rules are built in a visual editor and can be deployed across an organization via shared profiles. Integrates with SOLIDWORKS PDM for gate-check enforcement before release. Strong for: SOLIDWORKS shops that need pre-release compliance gates; teams managing large part libraries with strict naming and property requirements.
• PTC Creo ModelCHECK — Runs configurable checks on Creo models and drawings at regeneration or save. Covers modeling best practices, feature order, datum usage, drawing completeness, and company-specific rules. Metrics dashboards let managers monitor compliance across teams and projects. Strong for: PTC/Creo-centric organizations in aerospace and defense where modeling standards are as critical as drawing standards.
• Altiva CADconform — A dedicated standards management platform for AutoCAD and MicroStation environments. Offers centralized web-based rule repositories, a check/fix workflow at the drafter's desk, and a tamper-proof electronic seal that certifies a drawing's full compliance. Includes the U.S. National CAD Standard V5.0 as a built-in rule set. Strong for: Government agencies, transportation departments, and AEC firms that require formal proof of NCS compliance and auditable conformance records.

Takeaway: Rules-based checkers are your first line of defense. They're fast, deterministic, and fully integrated into your CAD environment. But they only catch what you can write a rule for—format violations, not engineering judgment errors. Think of them as spellcheck for your standards, not a peer reviewer.

AI Drawing & CAD Review Agents^{AI Drawing & CAD Review Agents}

Who It's For:Teams drowning in review backlogs who need to automate the "common checks" and free human reviewers for the nuanced, judgment-heavy decisions that actually require their expertise.

Why It Matters:Human reviews are inconsistent by nature. Reviewer A catches the missing datum; Reviewer B spots the tight tolerance; neither catches the cross-sheet callout mismatch. AI review agents apply every check, on every drawing, every time—and they work on the actual geometry, not just metadata. This is the category seeing the most rapid development in 2026.

Tools to Explore:

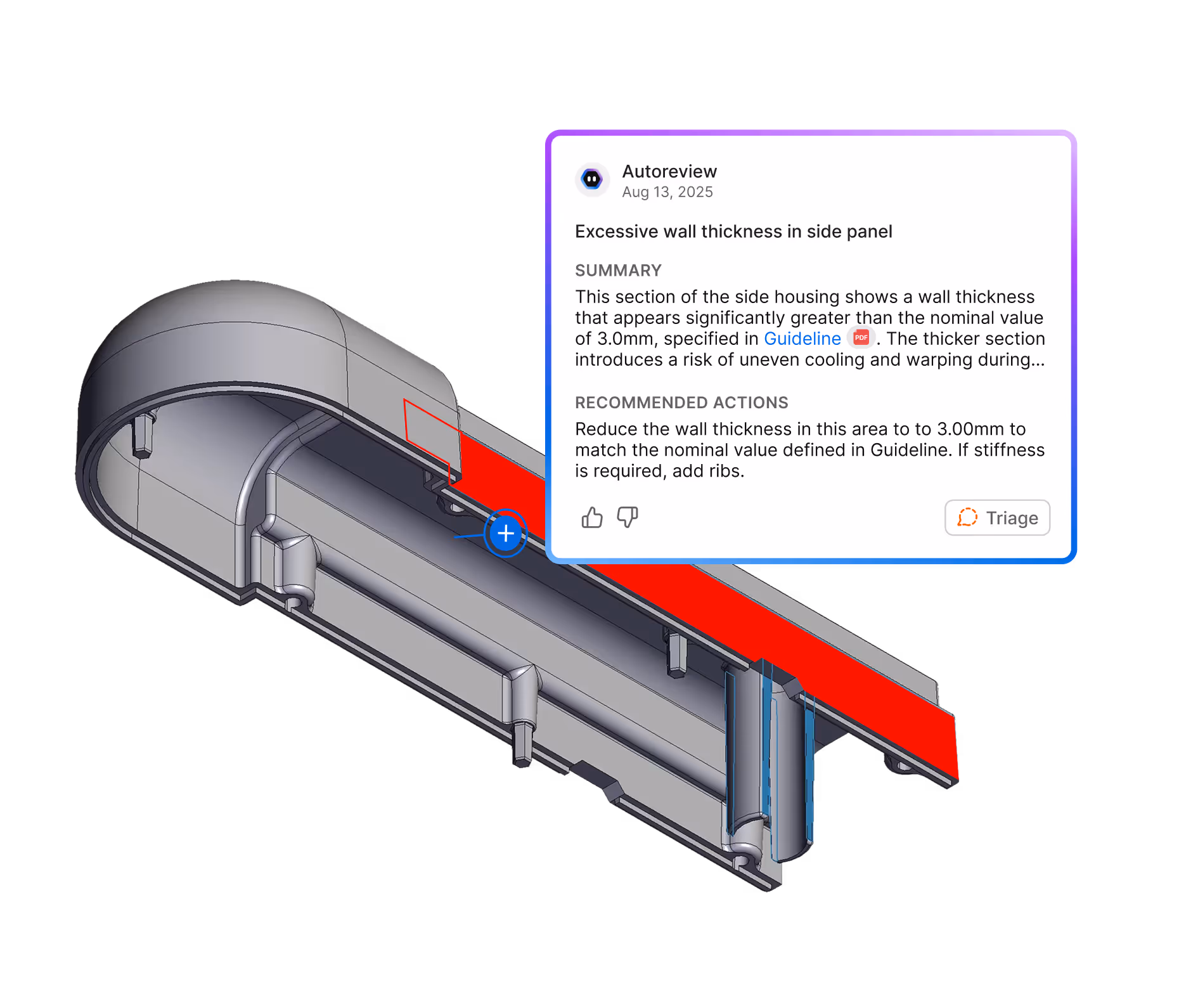

• CoLab AutoReview — An AI engineering agent that reads native CAD geometry and 2D drawings to run multi-step checks in a single pass—title block accuracy, ambiguous notes and callouts, cross-view inconsistencies, DFM violations, and custom company checklists. It builds an AI Knowledge Graph from your team's review history, linking feedback to the 3D models and drawings it references. Integrated with a collaborative review workflow where issues are tracked with traceability, not just flagged in a pass/fail report. Strong for: Distributed engineering teams running formal review workflows; organizations in regulated industries (aerospace, defense, medical devices) who need traceable, standards-cited annotations.
• Siemens NX AI Design Rule Enforcement — Uses pattern recognition across design history to identify recurring features, anticipate modeling steps based on user behavior, and enforce design rules automatically during the modeling process. Deep integration with the Teamcenter/NX ecosystem means rules propagate through the digital thread from design through manufacturing. Strong for: Organizations already committed to the Siemens NX/Teamcenter stack who want standards enforcement embedded directly into the modeling workflow rather than applied as a downstream check.
• DraftAid — An intelligent drafting assistant that integrates with existing CAD environments as a plug-in. Focuses on automating repetitive drafting commands, dimension placement, and annotation consistency. Performs real-time constraint checks that flag parameter violations before you save—preserving your keyboard shortcuts and layer standards throughout. Strong for: AEC and MEP firms looking for a drafting-speed multiplier that enforces standards passively, without requiring engineers to run a separate checking step.

Takeaway: AI review agents represent the biggest shift in standards enforcement since rules engines went mainstream. They don't replace your human reviewers—they give them a head start, catching the common and repetitive issues so your best engineers can focus on the complex, judgment-heavy problems that actually require their expertise.

Product Data Quality (PDQ) Validation Tools^{Product Data Quality (PDQ) Validation Tools}

Who It's For:Teams exchanging 3D data across multi-CAD environments—especially automotive, aerospace, and defense organizations managing complex supplier ecosystems where a geometry error in translation can cascade into manufacturing failures.

Why It Matters:When you translate a CATIA model to NX or export to STEP for a supplier, hidden geometry defects—micro-gaps, degenerate faces, invalid edge loops—can silently corrupt downstream processes. PDQ tools validate that your 3D data meets both international standards (like SASIG/VDA 4955) and your company-specific quality criteria before it leaves your system.

Tools to Explore:

• Elysium CADdoctor / 3DxSUITE — The industry reference for 3D data translation and product data quality validation. CADdoctor performs strict PDQ checks against international and company-specific standards, then provides automated or wizard-guided geometry repair. The broader 3DxSUITE platform adds CADValidator for automatic change detection and Drawing Validator for 2D revision comparison. Supports LOTAR archival compliance checks. Strong for: Automotive and aerospace OEMs managing multi-CAD supply chains; organizations required to validate JT, STEP, or CATIA data quality before archival or supplier delivery.
• Capvidia CompareVidia — Specializes in geometric comparison and validation across CAD formats. Compares native models against translated outputs to detect deviations in geometry, PMI (Product Manufacturing Information), and metadata—ensuring that what your supplier receives matches what your engineer intended. Strong for: Quality teams responsible for validating data deliverables in multi-CAD environments; organizations implementing MBD (Model-Based Definition) workflows where PMI accuracy is critical.

Takeaway: PDQ validation is a different beast from drawing standards enforcement—it operates at the geometry level, catching defects that are invisible to the human eye but catastrophic for downstream processing. If your organization exchanges 3D data with suppliers or across CAD platforms, this layer of validation isn't optional.

GD&T and Annotation Intelligence^{GD&T and Annotation Intelligence}

Who It's For:Design engineers and quality teams responsible for ensuring that GD&T callouts, tolerance schemes, and drawing annotations are complete, consistent, and compliant with ASME Y14.5 or ISO GPS standards.

Why It Matters:A missing datum reference or an ambiguous tolerance zone doesn't just fail an audit—it creates a part that can't be inspected, a CMM program that can't be written, or a supplier who interprets the drawing differently than you intended. AI tools in this space are moving beyond simple "is there a tolerance on this dimension?" checks toward understanding whether the tolerance scheme actually communicates your design intent.

Tools to Explore:

• CoLab AutoReview — GD&T Checks — In addition to its broader drawing review capabilities, AutoReview includes targeted checks for GD&T completeness and consistency—detecting missing datums, flagging tolerances outside defined company standards, and identifying dimensioning violations that could cause inspection or manufacturing ambiguity. Strong for: Teams transitioning to MBD who need automated validation that their PMI is complete before moving away from 2D drawings.
• Autodesk Fusion Automated Drawings — Combines templates and heuristics with AI to auto-generate drawing views and annotations from 3D models. Uses machine learning to classify standard fasteners and exclude them from drawings, with ongoing development to place dimensions more naturally. Focused on getting the first pass of annotation right, reducing the manual annotation burden. Strong for: Fusion 360 users who want AI-assisted drafting that creates standards-compliant drawings from the start, rather than checking them after the fact.
• Siemens Solid Edge AI Drawing Generation — The latest Solid Edge release includes AI that can generate up to 80% of drawing views with minimal user input. The system applies your drafting standards during generation, reducing the number of post-creation corrections needed. Part of a broader trend toward AI-assisted annotation in major CAD platforms. Strong for: Solid Edge users looking to collapse the drawing creation and standards-checking steps into a single, AI-assisted workflow.

Takeaway: The smartest approach to GD&T compliance is shifting from "check after creation" to "create correctly from the start." The newest tools generate standards-compliant annotations during the drafting process itself—but you'll still need a verification step to catch the edge cases that automated generation misses.

Engineering Knowledge Capture & Lessons Learned^{Engineering Knowledge Capture & Lessons Learned}

Who It's For:Engineering leaders worried about institutional knowledge walking out the door when senior experts retire—and teams that keep solving the same problems because lessons from past projects are buried in email threads and someone's memory.

Why It Matters:Standards enforcement isn't just about checking boxes—it's about understanding why a standard exists. The best standards decisions are informed by past failures, past design reviews, and the accumulated judgment of your most experienced engineers. AI tools now capture that context automatically and surface it when it's relevant, turning passive institutional knowledge into an active enforcement input.

Tools to Explore:

• CoLab AI Knowledge Graph + Lessons Learned — CoLab automatically builds a knowledge graph in the background during design reviews, permanently linking 3D models, 2D drawings, and the conversational feedback that surrounded them. Its AI Lessons Learned module proactively surfaces past mistakes and best practices from similar parts, so engineers see relevant context before they repeat a known error. This directly feeds into AutoReview's enforcement logic. Strong for: Organizations experiencing generational knowledge transfer challenges; teams where the "why" behind a standard is as important as the standard itself.
• Aras Innovator AI Assistant — Offers a RAG-based (Retrieval-Augmented Generation) search layer across your PLM data, strictly citing direct sources to build trust with engineering users. Designed to surface relevant precedent—past ECOs, design decisions, failure reports—at the point where an engineer needs context for a standards decision. Strong for: Teams with mature PLM environments who need AI-powered search without sacrificing traceability and source attribution.

Takeaway: Enforcing standards without context is brittle—people follow rules better when they understand the failures that created them. Knowledge capture tools close that loop, turning every design review into training data for the next one and ensuring that your standards evolve with your organization's experience.

Getting Started: Small Steps, Big Impact

You don't need to overhaul your entire workflow. The teams seeing the fastest return are the ones that pick a single pain point and automate it first.

1. Audit your current review bottleneck. Where do drawings stall? Which checks are repeated most often? Which violations cause the most downstream rework? That bottleneck is your entry point.
2. Start with rules-based checking. If you don't already have your in-CAD standards checker configured, do that first. It's the fastest win—zero AI complexity, immediate consistency gains across every new drawing.
3. Layer in AI review for high-value checks. Once your format-level standards are automated, deploy an AI review agent on the checks that require engineering judgment—DFM violations, GD&T completeness, cross-sheet consistency. This is where the ROI accelerates.
4. Capture knowledge as you go. Every review—human or automated—generates data about what goes wrong and why. Use that data to refine your standards and train your AI tools. The compounding effect is the real payoff.

Looking Ahead: Where Standards Enforcement is Headed

The trajectory is clear: standards enforcement is moving upstream. Instead of catching violations after a design is complete, the next generation of tools will prevent them during creation. We're already seeing this with AI-assisted drawing generation in Fusion, Solid Edge, and others—annotations that are standards-compliant from the first pass.

As generative design matures and produces geometry at higher volumes, the limiting factor won't be the ability to create designs—it will be the ability to validate them. AI standards enforcement tools are positioned to become the quality gate between generated output and production-ready engineering. The teams investing in this layer now will be the ones who can actually use generative design at scale.

Standards enforcement has typically been treated as administrative overhead — the necessary friction between an engineer's intent and a production-ready design. The teams that change that framing are the ones who start treating every design review as a source of institutional knowledge. Each flagged issue, resolved comment, and closed annotation builds a clearer picture of where your past designs failed and why.

The engineers reviewing today's designs are encoding how your organization thinks about quality. The feedback they leave, the standards they enforce, the judgment calls they make — all of it becomes institutional knowledge that outlasts any individual. That's what good standards enforcement actually produces: not just fewer errors on the drawing, but a smarter, more efficient organization capable of producing better products faster.

‍
